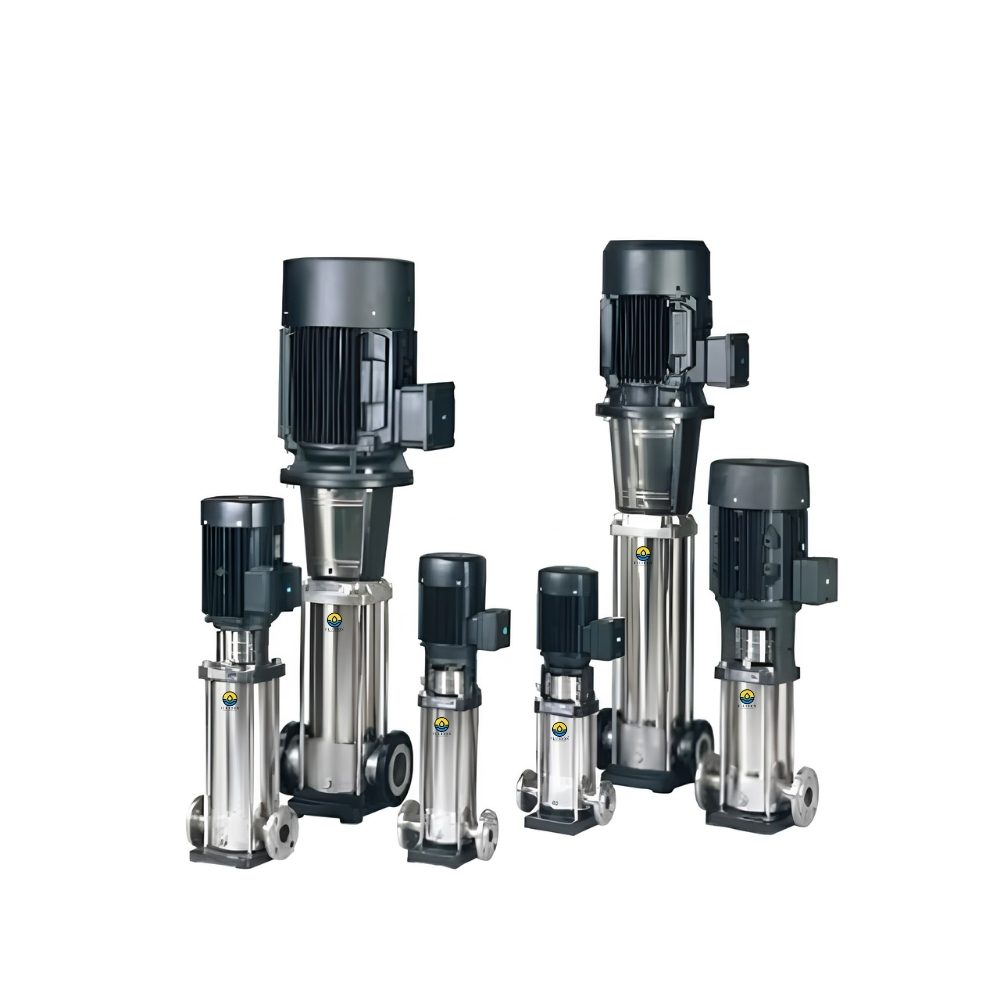

FXV(L) Series Vertical Inline Multistage Pump
FXV(L) series stainless steel multi-stage centrifugal pump (afterwards called pump)boasts characters of high efficiency, low noise, steady operation, etc.The pump set adopts the non-self-priming vertical multi-stage structure, which makes a compact whole,its installation easy, its operation and maintenance convenient.
DIN 24255 Standard
EN 733 Compliant
ATEX Version Available
Technical Sales Support
Need a custom specification or bulk order pricing?
Share Product
Sayfa bağlantısı panoya kopyalandı!
INSTALLATIONS AND USE
- Pressure boosting: Residential buildings, hotels, hospitals, malls, offices
- Water supply: Municipal systems, potable water, tank transfer
- Industry: Process water, machinery feeding, cleaning systems
- HVAC: Heating/cooling systems, chillers, boiler feed
- Water treatment: RO systems, filtration, treatment plants
- Agriculture: Irrigation, greenhouses, water transfer
- Fire systems: Firefighting booster and jockey pumps
- Special processes: Pure water, light chemical transfer, food & beverage support
OPERATING CONDITIONS
+ Medium temperature: normal type:0℃ ~68℃ hot water type:0℃ ~120℃
+ Ambient temperature:+40℃
+ Max ambient pressure:1.0MPa
+ PH: 5 to 8
ELECTRIC MOTOR
Full-enclosed and ventilating two-pole standard motor
Protection clsas: IP55
Insulation class: F
Standard voltage Single phase 220V-50Hz Three phase:380/400V-50Hz
COMPONENT MATERIALS
- Maks. Flow : 120 m³/h
- Maks. Head: 300 m
- Power Supply: 220V-380V / Single-Three-phase / 50-60 Hz
- Body Material: AISI 304 Stainless Steel
- Impeller: AISI 304 Stainless Steel
- Mechanical Seal: Carbon / Ceramic
- Temperature Range: -20°C to +68°C (up to +120°C with special seal option)
